Bottom View Doubt

#1

Hi,
Please give any hint about the problem.

#2

Hey @vatsal50

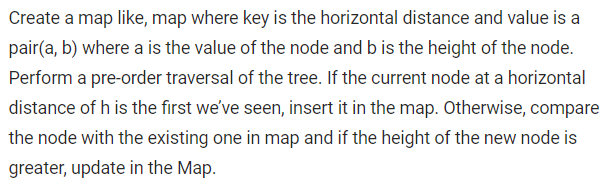

this is the approach using map.

void printBottomViewUtil(Node * root, int curr, int hd, map <int, pair <int, int>> & m)
{
// Base case
if (root == NULL)
return;

// If node for a particular
// horizontal distance is not
// present, add to the map.
if (m.find(hd) == m.end())
{
    m[hd] = make_pair(root -> data, curr);
}
// Compare height for already
// present node at similar horizontal
// distance
else
{
    pair < int, int > p = m[hd];
    if (p.second <= curr)
    {
        m[hd].second = curr;
        m[hd].first = root -> data;
    }
}

// Recur for left subtree
printBottomViewUtil(root -> left, curr + 1, hd - 1, m);

// Recur for right subtree
printBottomViewUtil(root -> right, curr + 1, hd + 1, m);

}

void printBottomView(Node * root)
{

// Map to store Horizontal Distance,
// Height and Data.
map < int, pair < int, int > > m;

printBottomViewUtil(root, 0, 0, m);

 // Prints the values stored by printBottomViewUtil()
map < int, pair < int, int > > ::iterator it;
for (it = m.begin(); it != m.end(); ++it)
{
    pair < int, int > p = it -> second;
    cout << p.first << " ";
}


}
