XOR Profit Question

Please elaborate the question being asked beacuse I am not able to get what is the exact meaning of max value of a XOR b, beacuse the result would come out to be an integer value only, so what is the question trying to find out.

See this, you will get the intution
consider pattern of binary values from L to R. We can see that first bit from L to R either changes from 0 to 1 or it stays 1 i.e. if we take the XOR of any two numbers for maximum value their first bit will be fixed which will be same as first bit of XOR of L and R itself.
After observing the technique to get first bit, we can see that if we XOR L and R, the most significant bit of this XOR will tell us the maximum value we can achieve i.e. let XOR of L and R is 1xxx where x can be 0 or 1 then maximum XOR value we can get is 1111 because from L to R we have all possible combination of xxx and it is always possible to choose these bits in such a way from two numbers such that their XOR becomes all 1.

Examples 1:
L = 8 R = 20
L ^ R = (01000) ^ (10100) = (11100)
Now as L ^ R is of form (1xxxx) we
can get maximum XOR as (11111) by
choosing A and B as 15 and 16 (01111
and 10000)

Examples 2:
L = 16 R = 20
L ^ R = (10000) ^ (10100) = (00100)
Now as L ^ R is of form (1xx) we can
get maximum xor as (111) by choosing
A and B as 19 and 20 (10011 and 10100)

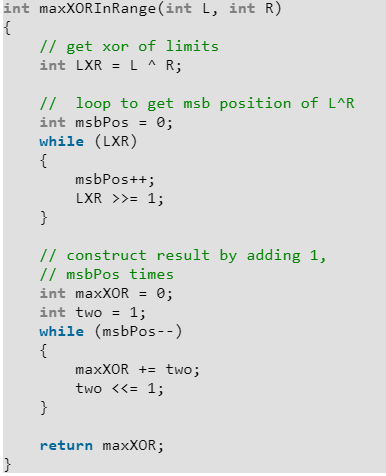

So the solution of this problem depends on the value of (L ^ R) only. We will calculate the L^R value first and then from most significant bit of this value, we will add all 1s to get the final result.
